T Series LED rotating light
– Ø60 / Ø84 / Ø100 / Ø150 rotating continuous light, rotating continuous light and buzzer
– Various supporter mounting type
– Economical price, simple installation structure
– Protective cap with solid poly-carbonate material
– Rotational structure with the excellent abrasion resistive acetal gear
– Degree of protection IP 54
– Light source : LED
Suffix
| Code | Description | ||||||
|
T |
LED rotating light |
||||||
|
Dimensions (Diameter) |
060 |
Ø 60 |
|||||
|
084 |
Ø 84 |
||||||
|
100 |
Ø 100 |
||||||
|
150 |
Ø 150 |
||||||
|
Cap Shap |
P |
Round cap (except for Ø 150) |
|||||
|
F |
Square cap |
||||||
|
Functions |
A |
rotating light |
|||||
|
F |
rotating light with buzzer |
||||||
|
Voltage source |
D12 |
12 Vdc |
|||||
|
D24 |
24 Vdc |
||||||
|
A11 |
110-240 Vac |
||||||
|
Colour |
R |
Red |
|||||
|
Y |
Yellow |
||||||
|
G |
Green |
||||||
|
A |
Blue (only available for Ø 84) |
||||||
|
Mount |
D |
Direct mount |
|||||
|
M |
With support base (for Ø 60 and Ø 84 without buzzer) |
||||||
Specifications
| Rotating | Rotating with buzzer | |
|
Power consumption |
12 V d.c. : 0.08 A, 24 V d.c. : 0.06 A, 110 – 220 V a.c. : 0.03 A |
12 V d.c. : 0.09 A, 24 V d.c. : 0.07 A, 110 – 220 V a.c. : 0.04 A |
|
Rotating speed |
180 Rev/Min |
|
|
Buzzer volume |
80dB @ 1m |
|
|
Cap material |
Polycarbonate (PC) |
|
|
Body material |
ABS |
|
|
Cap colour |
Red, yellow, green, blue |
|
|
Ingress protection |
IP54 |
|
|
Operating environment |
-15°C to 50°C |
|

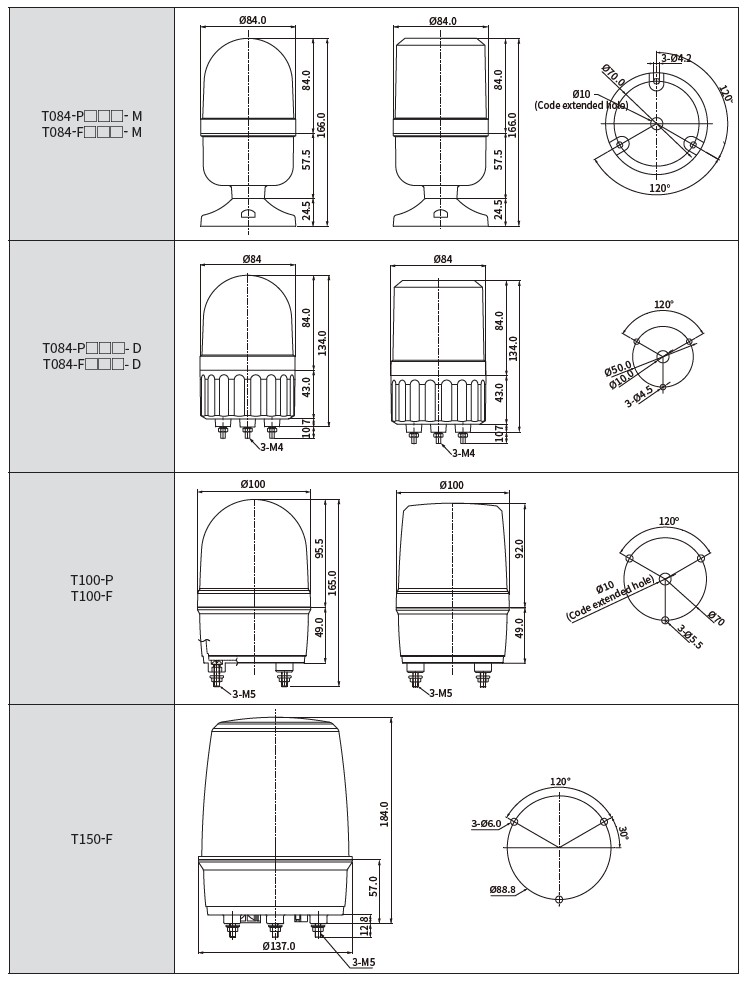

Dimensions
